Stubble cultivators

SYNKRO T trailed cultivator

A good thing still improved

Types

Technical data

	SYNKRO 4030 T	SYNKRO 4030 T nova	SYNKRO 5030 T	SYNKRO 5030 T nova	SYNKRO 6030 T
Working width	4 m	4 m	5 m	5 m	6 m
Tines	14 pcs.	14 pcs.	18 pcs.	18 pcs.	22 pcs.
Leg dimensions	60 x 25	60 x 25	60 x 25	60 x 25	60 x 25
Tine spacing	27 cm	27 cm	27 cm	27 cm	27 cm
Row spacing	75 cm	75 cm	75 cm	75 cm	75 cm
Concave discs	9 pcs.	9 pcs.	11 pcs.	11 pcs.	13 pcs.
Beam dimensions	100 x 100 mm	100 x 100 mm	100 x 100 mm	100 x 100 mm	100 x 100 mm
Under beam clearance	85 cm	85 cm	85 cm	85 cm	85 cm
Power requirement	150 hp	150 hp	180 hp	180 hp	210 hp
Transport width	3 m	3 m	3 m	3 m	3 m

	SYNKRO 6030 T nova
Working width	6 m
Tines	22 pcs.
Leg dimensions	60 x 25
Tine spacing	27 cm
Row spacing	75 cm
Concave discs	13 pcs.
Beam dimensions	100 x 100 mm
Under beam clearance	85 cm
Triggering pressure on stone protection system	550 kg
Clearance height	25 cm
Power requirement	210 hp
Transport width	3 m
Weight with cage roller Ø 540 mm
Weight with knife packer roller

Dimensions and weights are subject to change due to ongoing technical development, and vary from country to country.

Standard Equipment

SYNKRO T

Mounting	Trailed hydraulic folding
Mounting option	Three point linkage c/w enclosed lower link pins
Mounting category	Cat. III / Width 2 Cat. III / Width 3
Working depth	5 - 30 cm
Folding	Hydraulic 2 section
Point type	Chisel point with shin and wings
Concave discs	Scalloped
Tyres	500/45-17
Lighting	Marker boards and lighting
	2 x double-acting
Electrical connection	1 x 7-pin lighting plug
Standard equipment includes	Mounting for rear roller

Technical highlights

Trailing rollers for all soil types

Roller versions and applications

Type	Diameter (inch / mm)	Use on moist soil			Use on soil type
Type	Diameter (inch / mm)	dry	medium	moist	light	medium	heavy
Cutting ring roller	23.6” / 600	●	●			●	●
Cage roller	21.3” / 540	●	●		●	●
Double cage roller	16.5” / 15” / 420/380	●	●		●	●
Pack ring roller	21.7” / 550	●	●	●	●	●	●
Pendular Rotopack	10.6” / 8.5” / 270 / 215	●	●	●	●	●	●

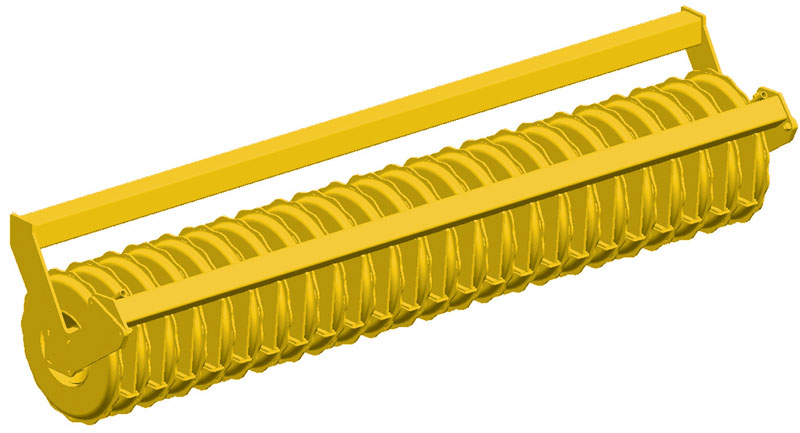

Cutting ring roller

The advantages of the cutting ring roller (24” / 600 mm diameter) include enhanced crumbling and compression by means of wedge-shaped rings. The blades between the rings crush the lumps of earth and also clean the spaces between them. Compression in strips has the advantage that water can be absorbed better. The correct choice for dry, difficult soils.

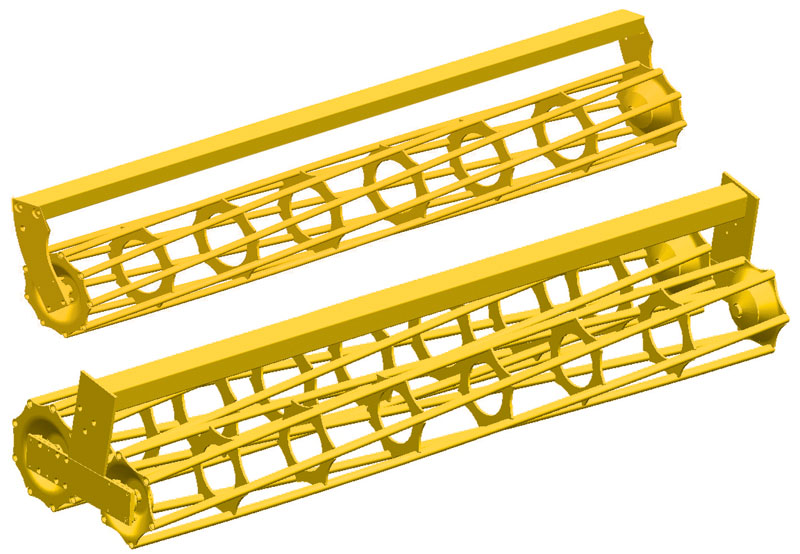

Cage roller

The ideal roller for dealing with dry, non-sticky soils.
The roller is fitted with twelve strong rods for optimal
compression. Diameter 21” / 540 mm.

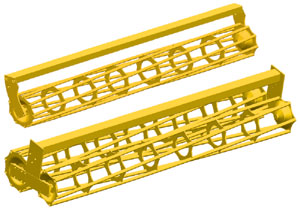

Double cage roller
The double cage roller is fitted with different diameters(16.5” / 420 mm front and 15” / 380 mm rear). The pendular function ensures optimal crumbling and adjustment to the contours of the ground..

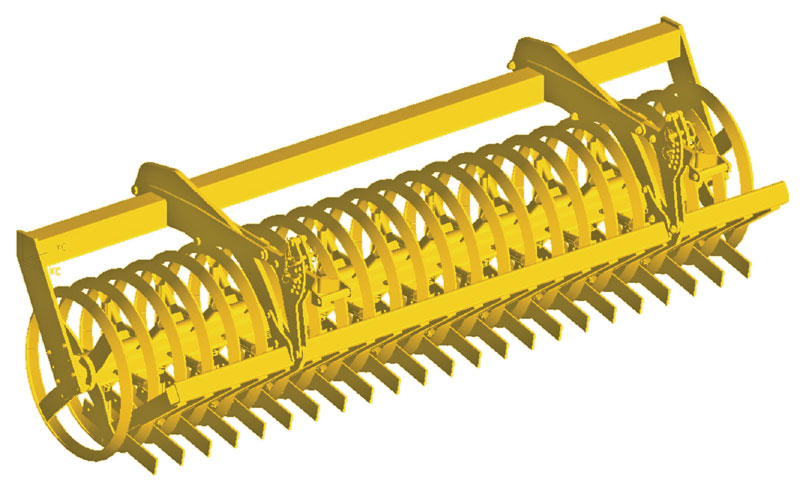

Pack ring roller

The shoulder rings have a diameter of 22” / 550 mm, and there are eight rings per metre of working width. The roller leaves behind consolidation in strips, promoting water absorption and soil respiration. This is the ideal roller for stony, damp soil conditions and large quantities of organic material.

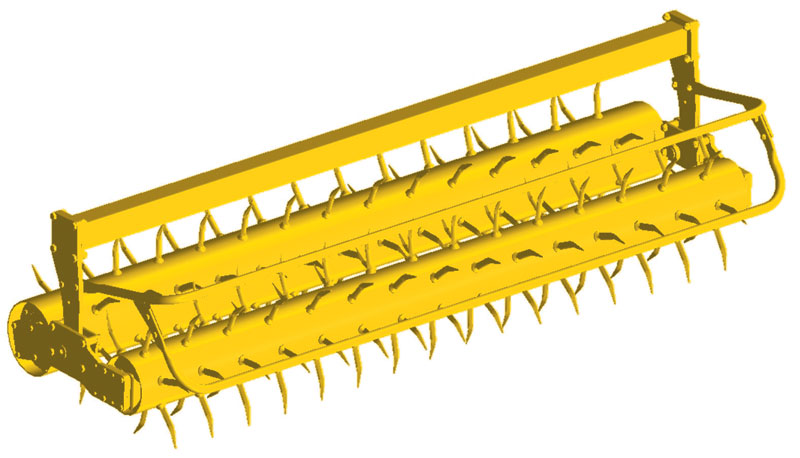

Rotopack and Pendular Rotopack
Two aggressive tine rotors that reach into each other, crumble and mix particularly well. Each rotor consists of a central tube. The front rotor has a diameter of 11” / 270 mm, the rear rotor 8.5” / 215 mm (tine external diameter is 24” / 600 mm and 21.5” / 545 mm). The pendular suspension ensures the best adaptation to any unevenness of the terrain. Rotopack rotors mix particularly intensively – for light to heavy, non-sticky soils. Harvest residues remain on the surface of the soil and protect the soil against drying.

DISCS

Harrow discs smooth over and provide a consistent finish. The discs are bolted behind the tines onto an extra beam and can be adjusted in pairs. The ensure that there is no clogging. The discs tear apart any uneven patches and automatically redistribute the soil due to their offset configuration.

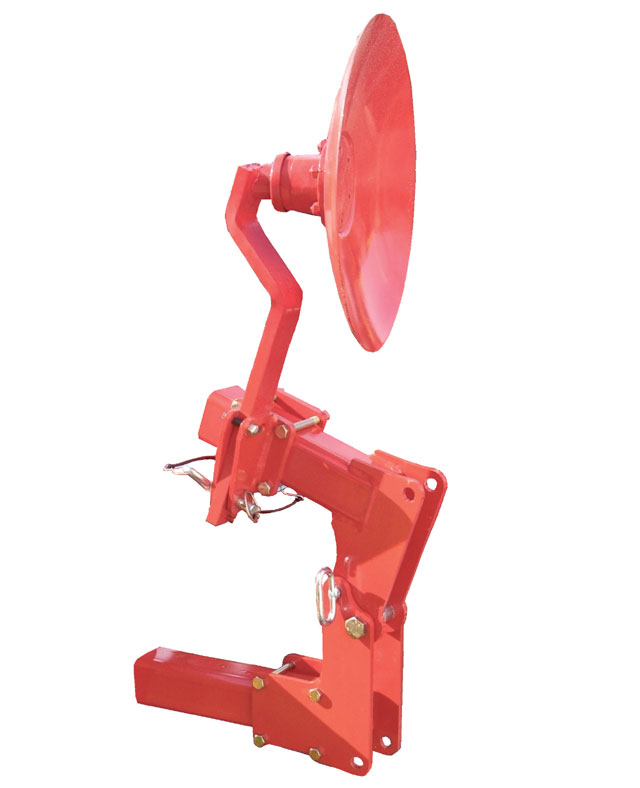

Side discs can be folded upwards (optional extra), to prevent ridges.

Tines and trip leg system

Tine shape

1. goose-foot blade with quick-change system
2. narrow blade with quick-change system
3. twin heart blade with combined mulch-wing blade
4. chisel blade with combined mulch-wing blade

Spread-wing share – works in evenly and thoroughly churns up mulch, manure and clay.
Good crumbling, loosens over the whole area, always cuts right through.
Wide bar point shares improve the mixing through of the soil.
Reversible and can be reset so that it obtains 3 times the normal service life.
Spread-wing shares and chisel bar points have a thickness of 10 mm – longer service life, better economy.
End share faces inwards to guide the flow of soil inwards. Prevents ridges from forming.

Tough tines with angle adjustment:

A choice of 3 positions can be used to optimise penetration and the effect of the cultivator to the soil conditions – no problem on extremely dry, hard soil.
Tines with trip legs have 2 positions.

Trip leg system – obstacles no problem

Reliable triggering on contact with obstacle
The high path of deflection guarantees smooth operation.
The triggerin pressure is adjusted to a specific triggering torque.
The trip leg system can be retro-fitted at any time.
Frame and configuration is the same as on standard cultivators
"Non-Stop cultivation" even on ground with a rocky subsoil.

SHARES

Flat shares for especially smooth ground. Double diamond share with very flat wings for wide coverage, especially for working depths between 5 and 6 cm.

Share carrier, spreadwing share and bar point share are bolted to the tine leg so that they can be replaced independently quickly and easily.

Detailed information

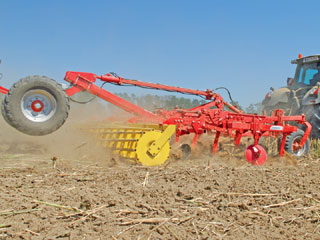

Trailed cultivator with hydraulic transport chassis

The classic piece of equipment for conservation in soil preparation is the SYNKRO cultivator.The mixing in of residue from the harvest near the surface increases the fertility of the soil and protects from erosion.

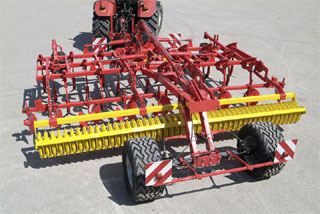

SYNKRO 6000 T

The transport chassis ensures that the rear axle of the tractor is not overloaded.
These trailed machines have a wide working width but can be folded up for
transport on roads so that the transport width does not exceed 9.84 ft / 3 metres.
The transport wheels are raised whilst working in the field, resulting in additional
loading of the implement. Good penetration is therefore guaranteed on heavy and dry soils.
The drawbar is coupled to the lower links. Mounting to Cat. 2 and Cat 3 is possible using the double flanged hitch. Ball-head or rotating towing eye are also optionally available for the adjustable drawbar as is a braking system.

SYNKRO 6000 T

News

28.04.2012
SYNKRO stubble cultivator: depth adjustment made easy
THE technical solution

The new generation of Pöttinger SYNKRO 1030 series cultivators is ideal for both shallow and deep stubble cultivation using tractors of 110 hp upwards, and offers numerous new technical solutions for even more efficient operation.

Central depth adjustment

Different soil types and varying applications (spring/summer/autumn) place a wide range of demands on stubble cultivators in terms of working depth. That's why it is extremely important that the working depth can be adjusted easily and conveniently: depth adjustment is designed ergonomically and is now much more accessible. You no longer need to step over the roller, making things easier as well as safer.
On the new SYNKROs there is an adjustment point at the front on the left and right side on both rigid and folding machines. On conventional equipment there are normally two adjustment points on each folding section.

SYNKRO 3030

Central depth adjustment

Thanks to the depth control system featuring pin-in-hole adjustment, the weight of the trailed roller can be transferred to the cultivator frame - particularly useful in dry and hard operating conditions.

An additional advantage with this new solution is that the working depth of all concave discs is adjusted in parallel with the trailed roller. This means that you don't need to re-adjust the discs after changing the depth of the cultivator. Set up once – always ready for action!

30.11.2011
SYNKRO stubble cultivators
The new tillage professionals

The end of harvesting means the start of the next one. After concluding a successful harvest, farmers start working on cultivating the soil. Stubble cultivation proves to be an effective counterpart to plant protection in times of rising prices. Soil loosening, conserving moisture, encouraging the germination of volunteers and weeds are all critical in preparing a good seedbed. It is important that cultivating starts as soon as possible after harvesting. The new generation of Pöttinger SYNKRO cultivators are ideal for both shallow and deep stubble cultivation using tractors of 110 hp upwards. These new models offer numerous new technical solutions for even more efficient operation.

Compact lightweights
The new 1030 series cultivators are lighter, shorter and thus more compact than previous models. The higher frame construction provides increased clearance. A new feature is the central depth adjustment at the front of the machine for setting the working depth: easy accessibility as well as enhanced safety and comfort are guaranteed. The rear roller’s weight can be transferred to the cultivator frame to ensure penetration even in dry and hard conditions. The angle of the new headstock is also adjustable to suit different types of tractor more effectively.

SYNKRO 3030

SYNKRO 6030 T

The new concave levelling discs are scalloped for improved soil dynamics and are completely maintenance free. The working depth of the levelling discs is regulated by the rear roller - convenient and easy operation guaranteed. The new 'NOVA' trip leg unit is equipped with overload protection (tripping force raised to 500 kg) is also maintenance-free. On models with trip legs, the concave levelling discs are mounted to the frame by rubber mountings.

The tines can be positioned in two positions: either a horizontal position to cut through the whole surface or a more aggressive position to penetrate in hard conditions and loosen the soil right in the top layer. High tillage tool strength is guaranteed by the low level of the tine mountings.

The wide range of rear rollers available is equipped for all operating situations and soil conditions.

The new, trailed SYNKRO
The new trailed SYNKRO stubble cultivators are available with working widths between 4 and 6 metres. The base unit consists of a mounted stubble cultivator and the drawbar and chassis can be retro-fitted. The trailed stubble cultivators feature the same technical innovations and advantages as the mounted machines. A completely new feature, however, is that the trailed models fold into 2 sections. This means that there is no centre section, thus lowering the centre of gravity of the machine during transport. This increases stability during transport while lowering height for transport and storage. The depth adjustment has also been changed: instead of two depth adjustment points per section, there is now only one. Easier accessibility and increased convenience are also the key advantages with this new solution.
